SPD – Swimming Pool Division

POOL TYPES

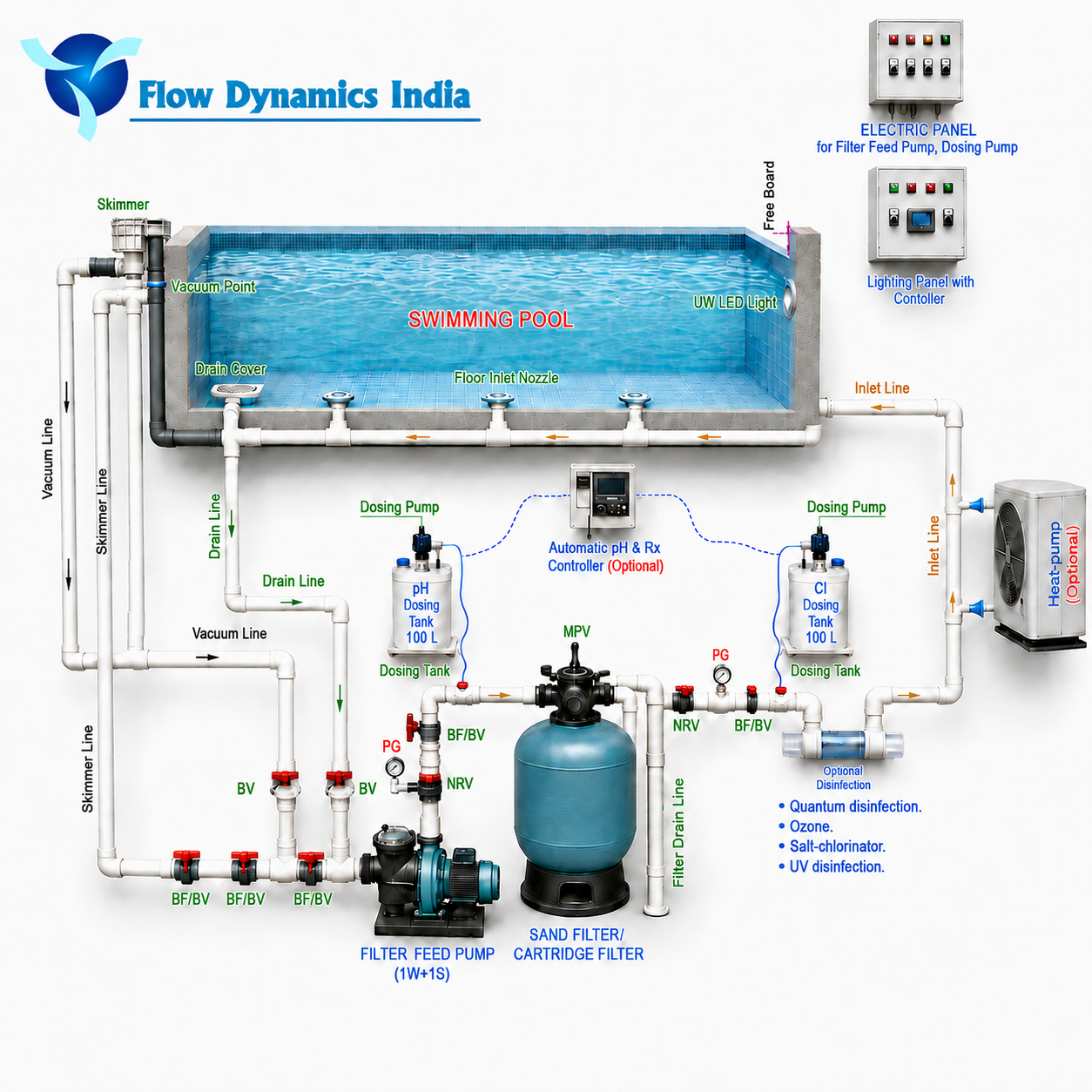

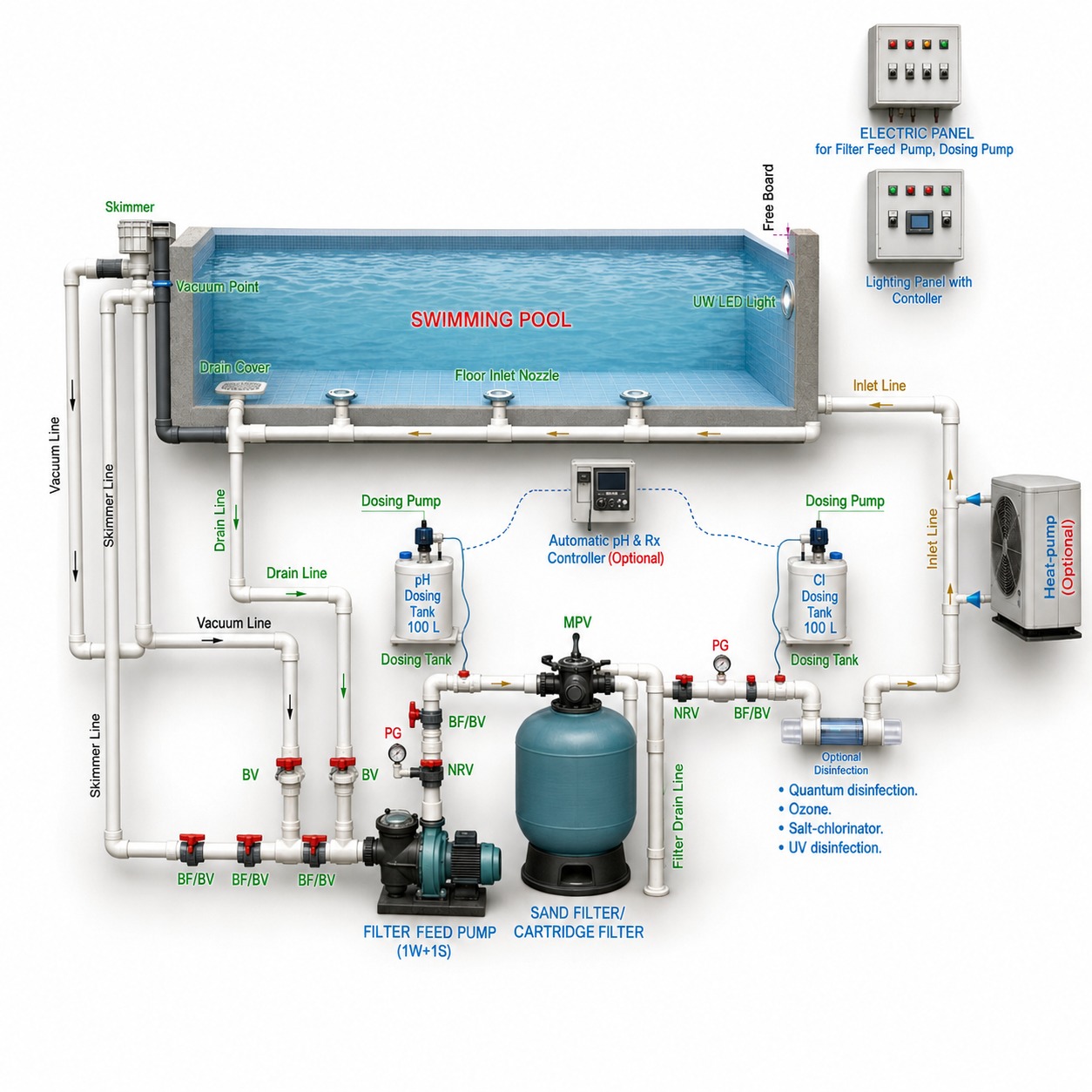

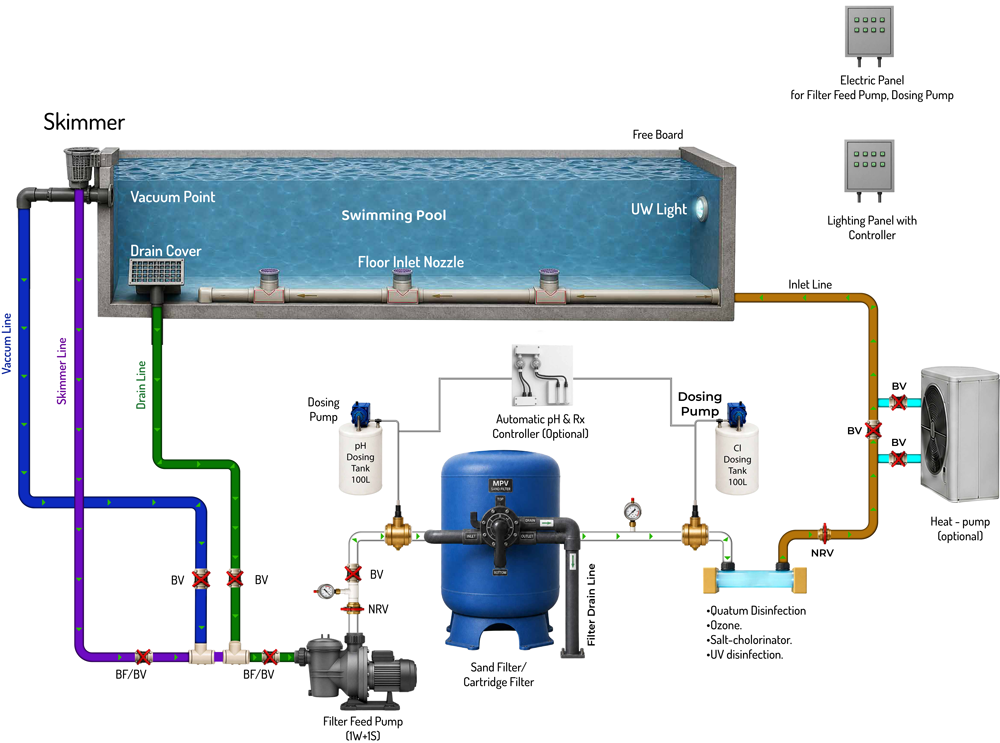

Skimmer Type Pool

A skimmer type pool is designed with water outflow points placed at regular intervals along the pool wall. These skimmers draw surface water from the pool, removing floating impurities such as dust, leaves, oil, and debris.
The collected water is then passed through the filtration and disinfection system, helping maintain clear, clean, and hygienic pool water. With its simple design, effective surface cleaning, and lower initial installation cost, a skimmer type pool offers reliable and efficient pool operation.

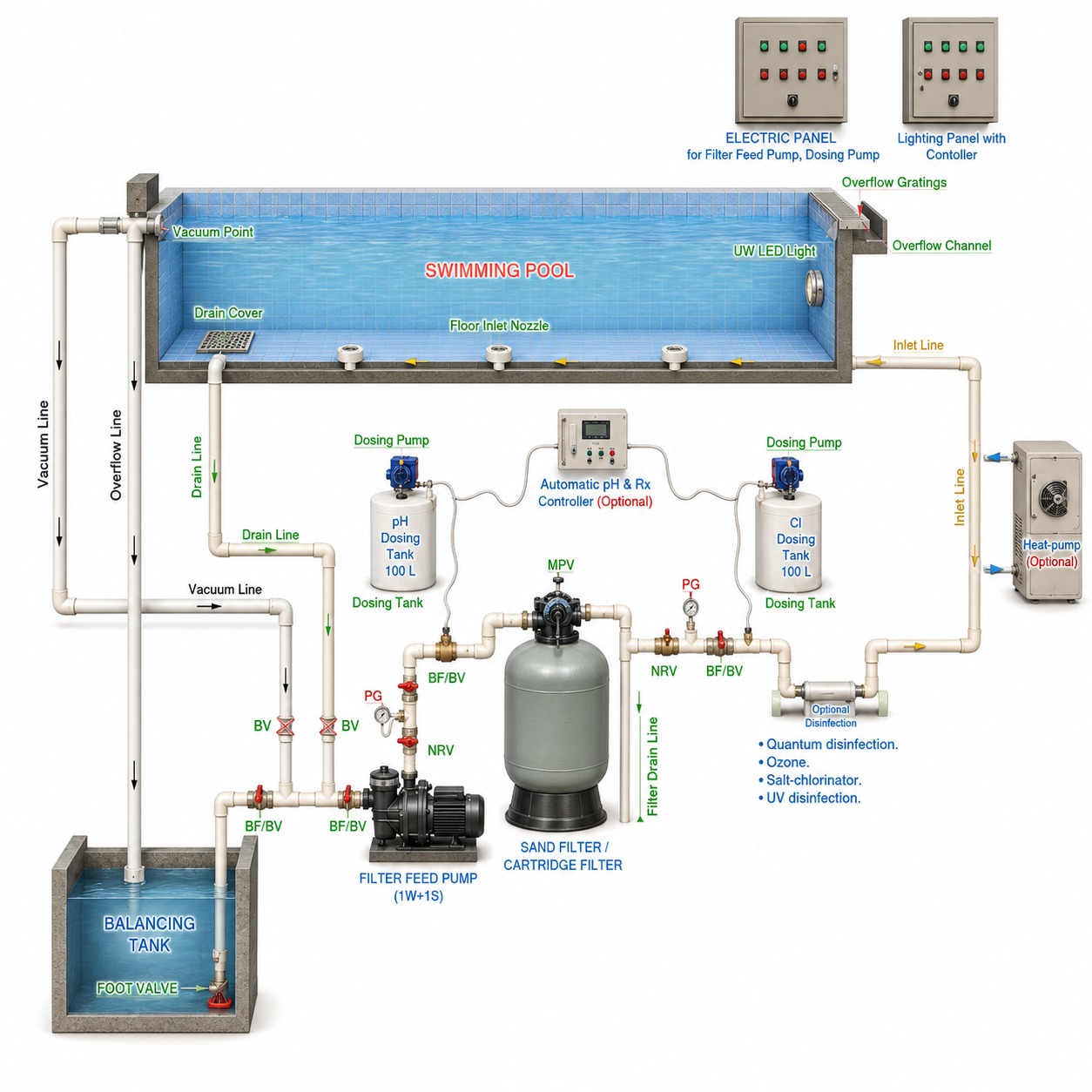

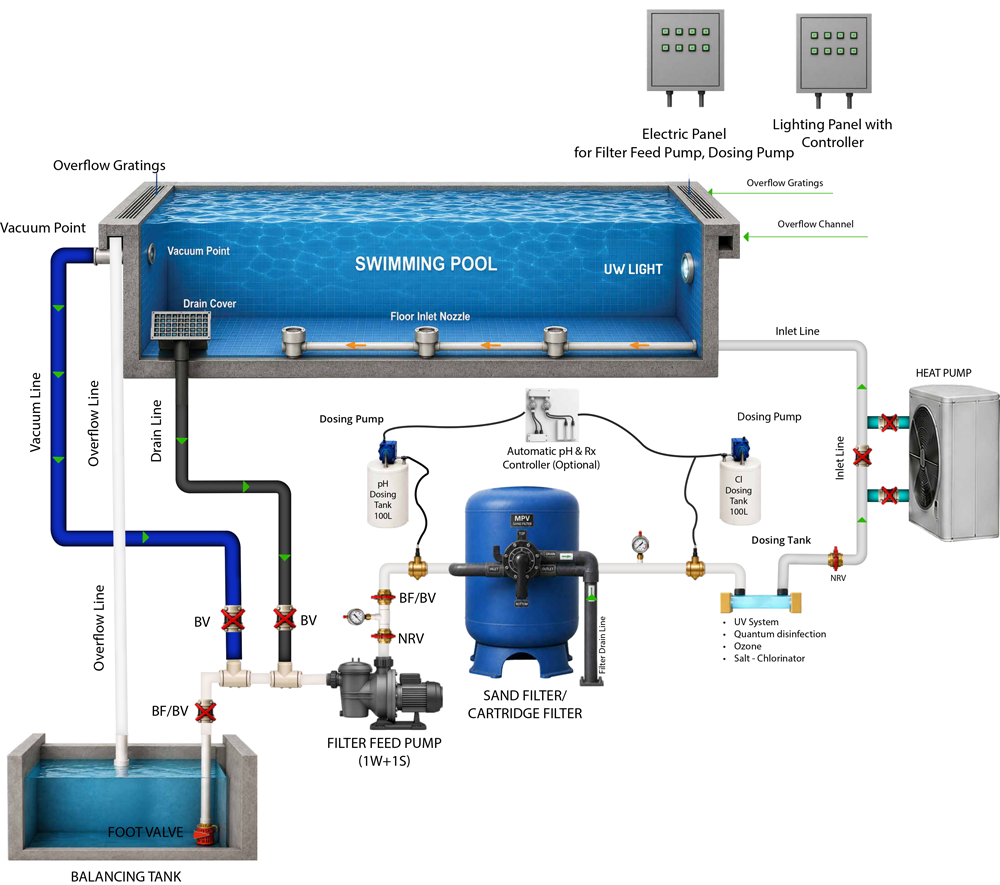

Overflow Type Pool

An overflow type pool is designed with a continuous weir around the pool perimeter, allowing water to flow evenly from the pool surface into the overflow channel. This system helps maintain a constant water level and supports efficient surface water circulation.
The overflow water is collected through the channel and transferred to the balancing tank before being filtered and disinfected. With effective circulation, clean water distribution, and a premium visual finish, overflow type pools deliver a high standard of hygiene, performance, and user experience.

Wall Hanging Integral Filters( Pipeless Filtration System )

Wall hanging integral filters, also known as pipeless filters, are compact filtration units designed to provide effective pool water circulation and filtration without the need for extensive plumbing work.
In this system, the filtration unit is directly installed on the pool wall and performs filtration, circulation, and return flow within the same compact arrangement. As it does not require a separate plant room, overflow channel, or complex pipeline network, it helps reduce installation time, space requirement, and overall project cost.

Filtration System with Auto/Manual MPV

Filtration System :

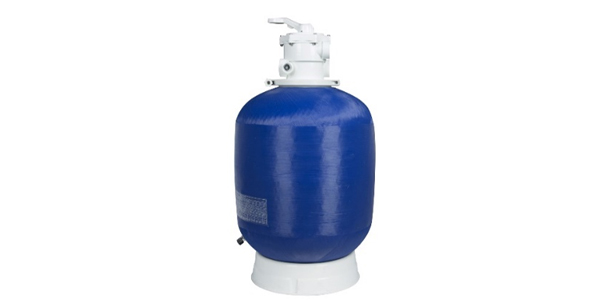

Bobbin Wound Sand Filter

  • Bobbin filter with Fiber and Polyester Rasin
  • Maximum Working Pressure: 2.5 bar
  • Test Pressure: Up to 5 Bar
  • Fitted with Pressure gauge, Air Vent & Water Purges
  • Compatible with Sand & Glass Media
  • Side Mounted / Top Monted (Size Specific)

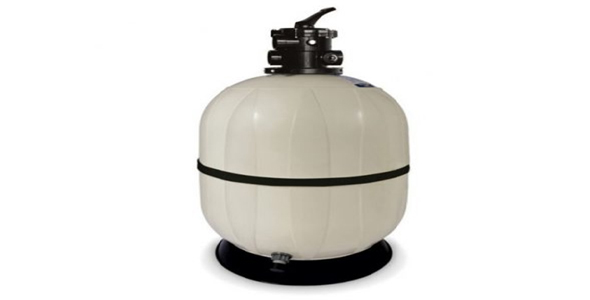

Injection Molded Sand Filter

  • 100 % made up from Polypropylene
  • Totally Injection molded
  • Polished & Glazed wedge finish
  • Distribution with micro-hole pipe, Draining micro-hole pipe distribution
  • Maximum Working Pressure: 2.5 bar
  • Test Pressure: Up to 5 Bar
  • Fitted with Pressure gauge, Air Vent & Water Purges
  • Compatible with Sand & Glass Media
  • Side Valve Mounted / Top Valve Monted (Size Specific)

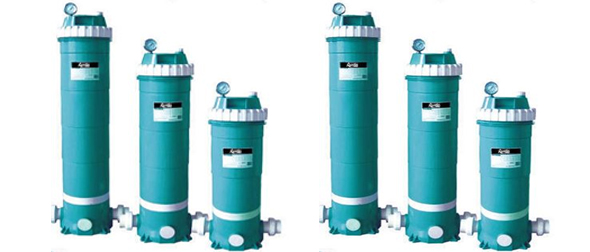

Cartridge Filter

  • UV resistant Polypropylene Body
  • Compact Filters, UV resistant tank
  • Easy Installation
  • No backwash, water Saving
  • Up to 20 microns fine filtration level
  • In-built Pressure Gauge

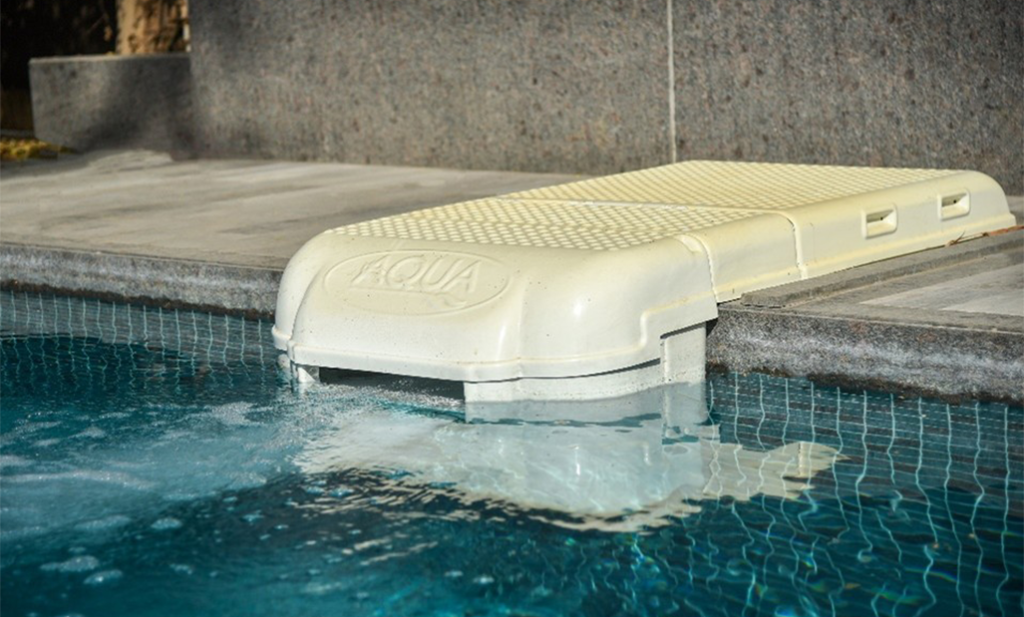

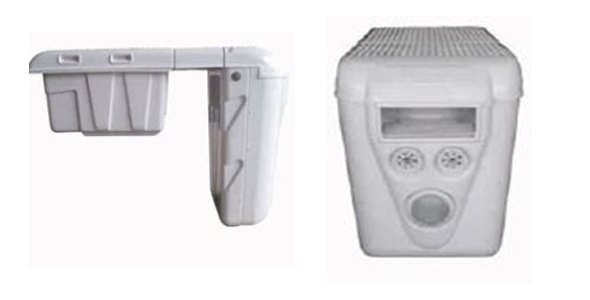

Wall Hanging Integral Filters (Pipeless Filters)

  • Integral Stand-alone unit for Filtration, dis-infection
  • Inbuilt light
  • Inbuilt circulation pump
  • Body made up of ABS
  • No need for Balancing Tank, Overflow channel or plant room
  • No Piping work Required
  • Suitable for Small Pools

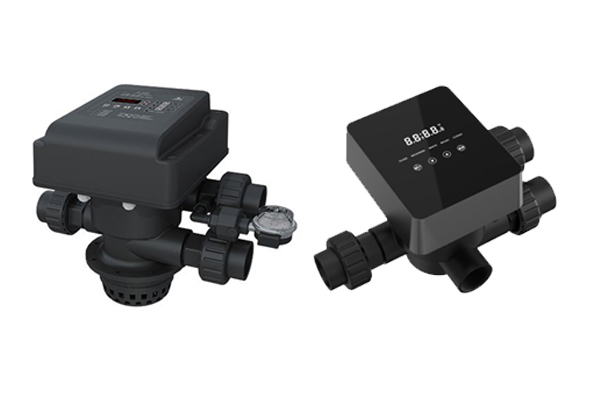

Automatic Multiport Valve

  • Fully automated backwash cycle — auto-triggers filter, backwash, and rinse without manual pump switching
  • Built-in digital controller — programmable timer and flow meter for scheduled automatic backwash operation
  • 6 operating modes — Filter, Backwash, Rinse, Recirculate, Waste & Closed, all from one valve head
  • Top-mount flange design — direct fit on standard sand and DE filter tanks for quick, tool-free installation
  • Corrosion-resistant ABS body — chemical-proof construction handles chlorine, salt water & pool chemicals
  • No pump stop required — smooth position switching without interrupting pool circulation cycle

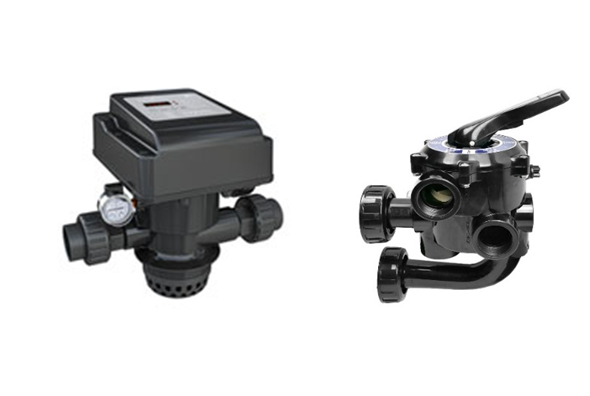

Multiport Filter Valve — 6-Position Manual Control

  • 6 essential operating positions — Filter, Backwash, Rinse, Recirculate, Waste & Closed with single lever control
  • Positive-lock lever handle — locks firmly into each position to prevent accidental shifting during operation
  • Universal top-mount fitting — compatible with all major sand and DE filter brands including Hayward, Pentair & Jandy
  • Built-in pressure gauge port — monitor filter pressure at a glance to know exactly when backwashing is needed
  • Heavy-duty ABS & PVC body — chlorine-proof, corrosion-resistant construction for years of reliable outdoor use
  • Available in 1.5" & 2" pipe sizes — suits both smaller residential pools and large high-flow commercial installations

Pool filtration pump

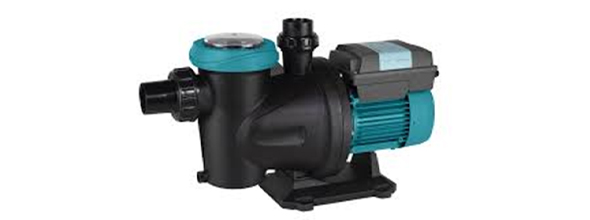

Standard Pool Pump

  • Swimming Pool Specialized pump with large size prefilter
  • A prefilter with transparent polycarbonate lid for visual inspection
  • Chemical Resistant Pump Body, lid & diffuser made up from polypropylene
  • IP-55 Protection, Silent working
  • No possible electrical contact with Water

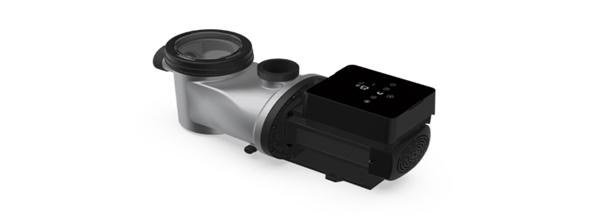

Inverter Type Pool Pump

  • Pump based on Inverter technology
  • the motor speed can be controlled precisely and with high-efficiency DC brush-less motor.
  • Extremely silent operation, ~ 33dBA@1m
  • Power consumption reading
  • One-click backwash
  • Wi-Fi function included (Optional)

Disinfection System

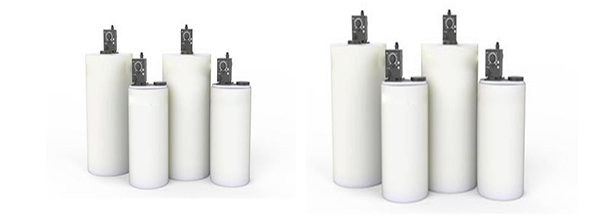

Chemical Dosing Pump with Tank and Stirrer

  • Chemical dosing via Inlet Filtered water piping, equalised disinfection throughout the pool basin
  • Built-in Stirrer in solution tank for chemical solution mixing - Optional
  • Fits Any Pool Size — Scalable for both small private pools and large commercial facilities.
  • Size Range: up to 50 LPH

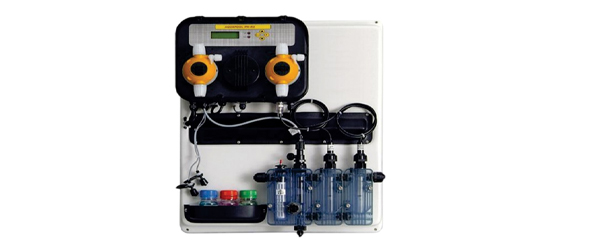

Automatic Chemical Dosing

  • Hands-Free Operation — Automatically doses chemicals into your pool 24/7 with zero manual effort required.
  • Real-Time Water Monitoring — Continuously checks pH and chlorine levels, dosing only when needed.
  • Accurate & Consistent — Delivers precise chemical amounts every time, keeping water safe and balanced.
  • Saves Time & Chemical Costs — No overdosing or underdosing — reduces chemical waste and saves money.
  • Safe for Swimmers — Maintains ideal water chemistry at all times for a clean, healthy swimming environment.

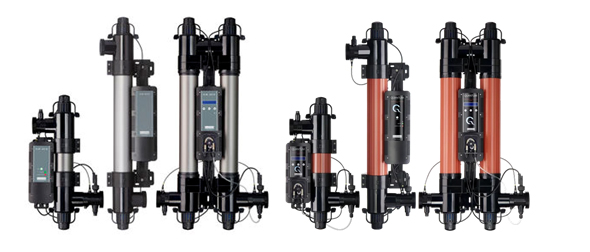

Quantum Disinfection

  • Combined Photocatalytic & Hydroxyl Radical technology
  • Breaks down organics such as sun tan, oil and urea converting them into there harmless molecular form
  • Destroys all viruses , bacteria and pathogens
  • Ensures significant reduction in chemical consumption
  • Comes pre-assembled with all the necessary sensors and control components
  • Ultimate sterilization without compromise to health
  • Sea water compatible

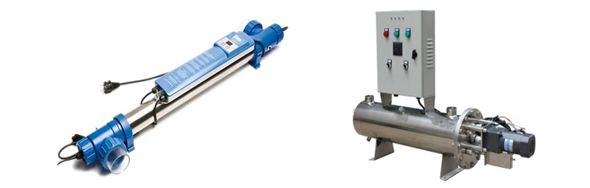

UV Disinfection

  • UV disinfection system is the proven treatment solution that reduce maintenance, improve water quality, and support sustainable living.
  • The system utilizes high output, low pressure UV lamps by electronic ballasts which are housed within the center enclosure
  • UV treatment is compatible with all other sanitisers, chlorine, bromine, active oxygen, per oxide and copper based compounds.
  • UV treatment introduces no by- product into the water

Ozone Disinfection

  • Clearer, cleaner pool water at all times
  • Complete sanitation and superior oxidation performance
  • No harmful by-products produced
  • Eliminates or significantly reduces chlorine usage
  • Maintains neutral pH of water naturally

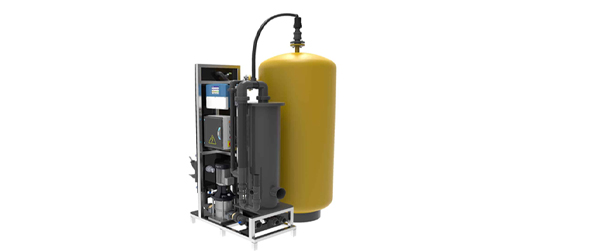

Gas Chlorinator

  • Simple to install and use, Gas chlorinators provide complete treatment and also reduces maintenance
  • Destroys all the micro-organisms in the cell and provide adequate level of free chlorine in the pool
  • Suitable for large Olympic size competition pool

Underwater Lights

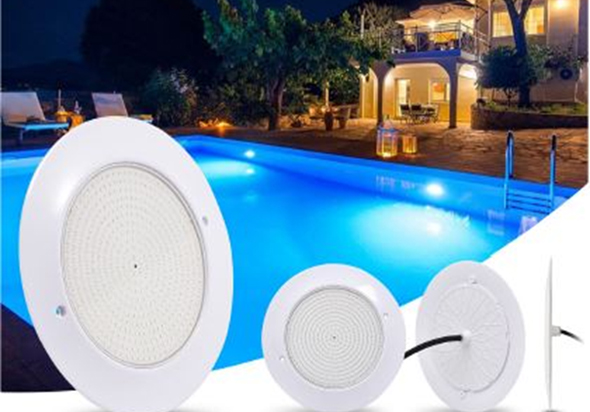

Ultra-Thin Flat LED Swimming Pool Light

  • Thinnest profile in its class : only 10mm thick for a completely flush, invisible look
  • Available MOC : ABS Plastic, SS304, SS316
  • Power Range : 6W – 35 W
  • Working Voltage : AC 12V, DC 12V
  • Available in multicolour : Warm/Cool white, RGB & RGBW color options — vibrant color-changing modes with Wi-Fi app* or RF remote
*Wi-fi app available on selected models.
  • IP68 fully waterproof : sealed resin-filled design safe at any pool depth
  • Wall & floor mountable : versatile installation on pool walls, steps, or floor surface

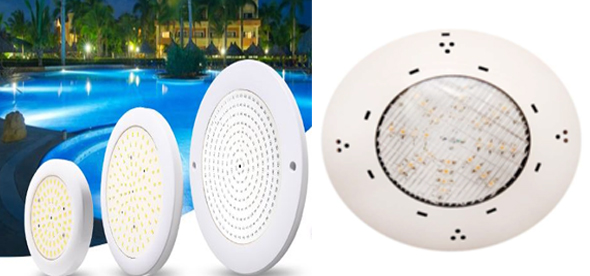

Wall Mounted LED Pool Lights

  • Available MOC : ABS Plastic, SS304
  • Power Range : 6W – 35 W
  • Working Voltage : AC 12V, DC 12V
  • Available in multicolour : Warm/Cool white, RGB & RGBW color options
  • IP68 fully waterproof : sealed resin-filled design safe at any pool depth
  • Wall & floor mountable: versatile installation on pool walls, steps, or floor surface

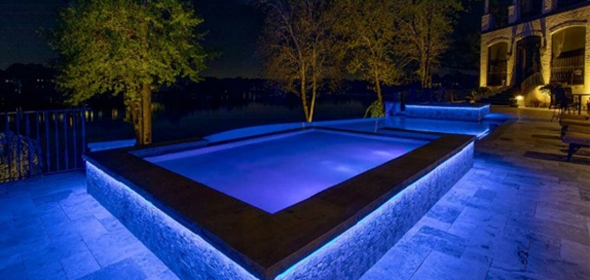

Pool Strip Lights

  • Full perimeter illumination / Specific Edge illumination
  • Ultra-dense placement ensures uniform streak-free color
  • Flexible circuit board - bends to fit any pool shape - round, rectangular or freeform
  • Wi-Fi & Bluetooth app control* — manage all lighting effects from your smartphone
* Wi-Fi & Bluetooth app control available on selected models

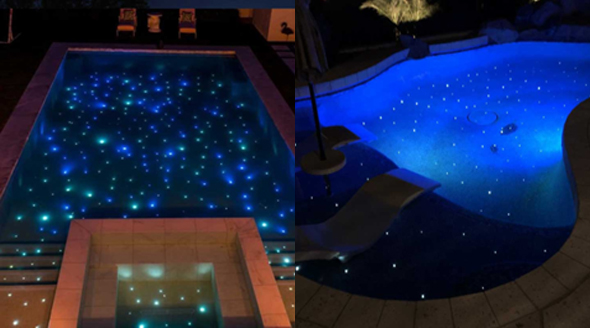

Fiber Optic Swimming Pool Light

  • Zero electricity in water : light travels through cables with no current, completely safe
  • Chlorine & UV resistant cable : fiber strands are fully immune to pool chemical damage
  • Illuminator box above water : all electronics stored dry in a poolside pump room
  • Wi-Fi & Bluetooth app control : manage all lighting effects from your smartphone
* Wi-Fi & Bluetooth app control available on selected models

Pool Basin fittings

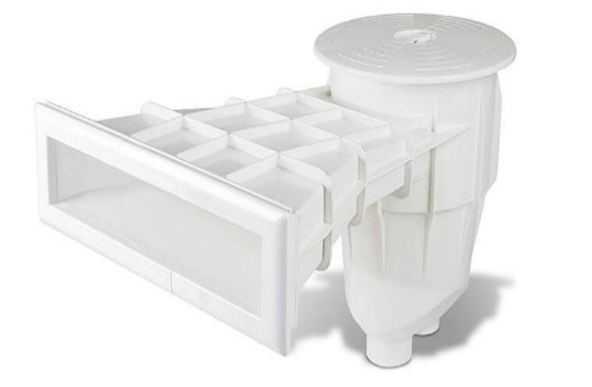

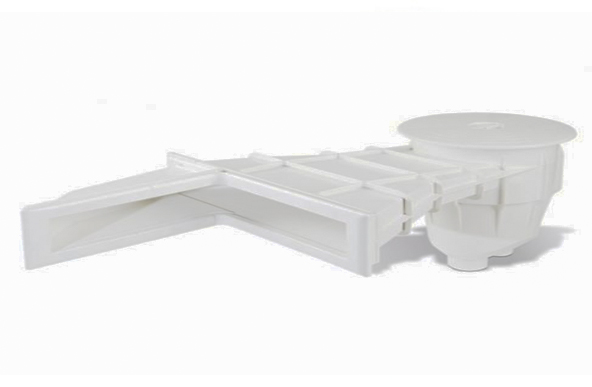

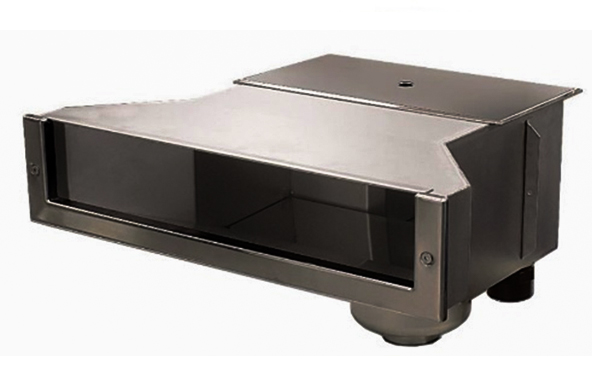

Skimmers

  • Available in Both stainless steel and ABS body
  • Increase the water level up to few centimetres away from the top of the edge
  • Protects Your Pool Equipment Built-in debris basket prevents pump and filter clogging, reducing wear and extending the life of your pool equipment.
  • Better Water Circulation Improves surface water flow and circulation, promoting a healthier, cleaner, and more balanced pool environment.
  • Low Maintenance & Easy to Clean Smooth stainless steel surfaces and quick-remove baskets make upkeep simple — minimal effort, maximum performance.

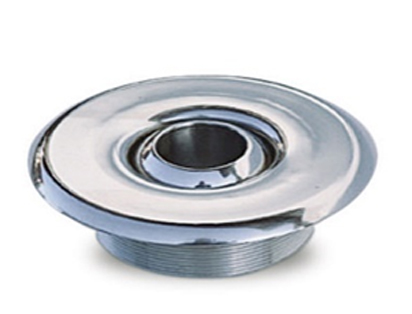

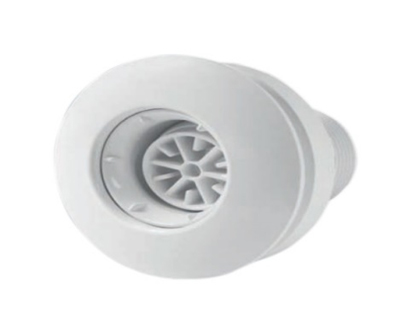

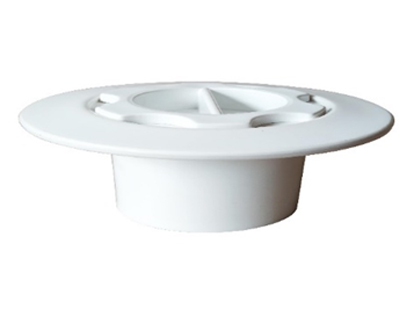

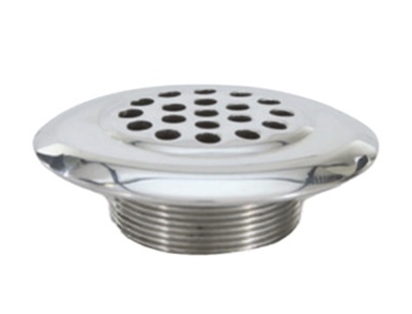

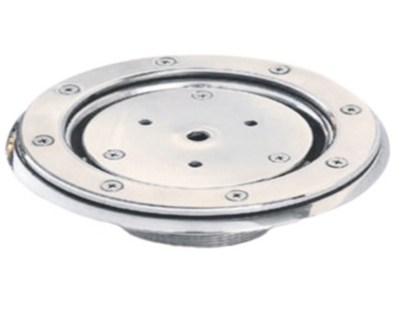

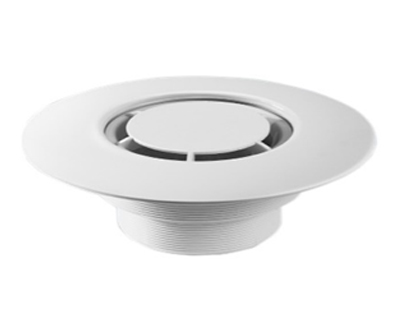

Nozzles

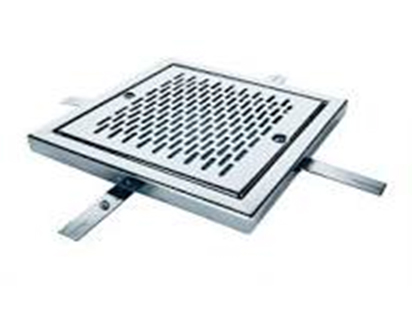

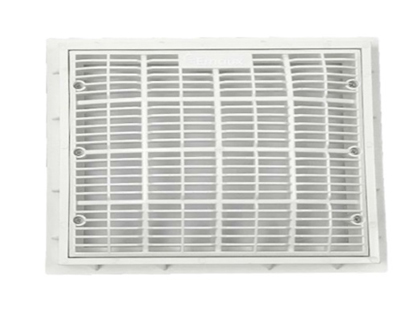

Drain Grills Available In Both Option (Stainless Steel And ABS)

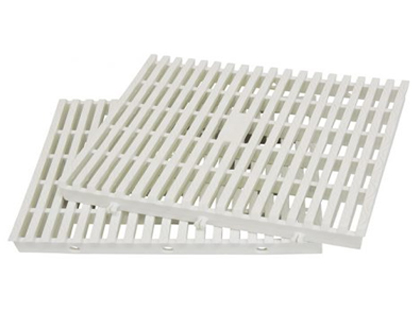

Overflow Gratings

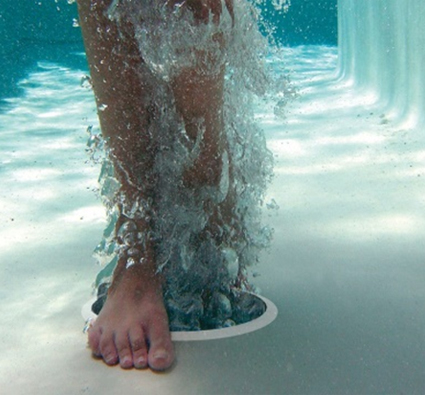

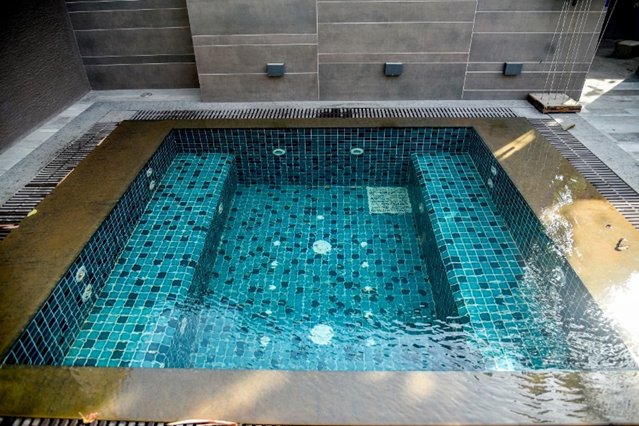

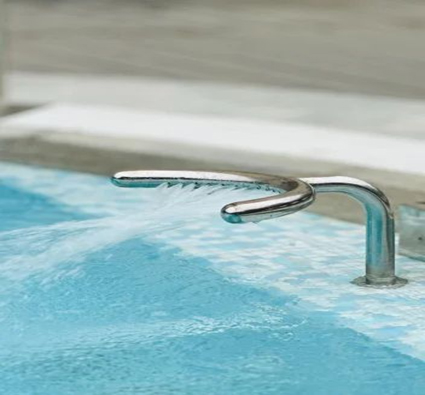

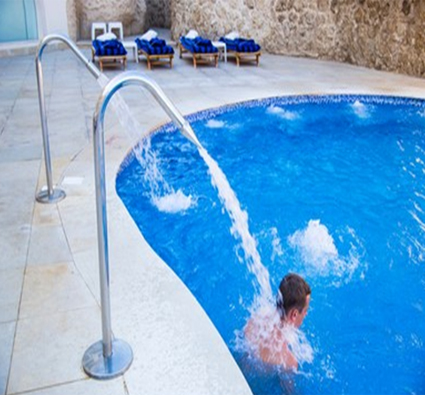

FDIWM Water Massage System

Jacuzzi NEW

  • Customized water massage system FDIWM as per client requirements, space availability & the seating arrangement.
  • FDIWM system is a technological wonder created to let you relax and restore the balance of mind and body.
  • FDIWM system can be built indoor or outdoor as per the client needs.

Different FDIWM Systems

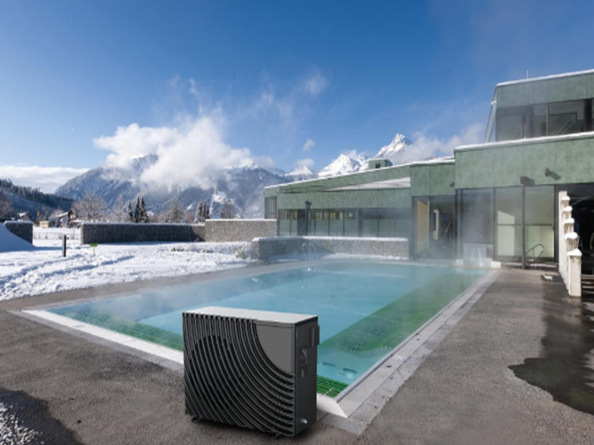

Temperature Controlled Pool NEW

  • Ideal for Pool Temperature Management Maintains comfortable swimming pool water temperature in all seasons.
  • Heating & Cooling up to 12°C Difference Capable of warming pool water up to 12°C in winter and cooling up to 12°C in summer, depending on site conditions.
  • Suitable for Both Warm & Cool Water Control Designed for year-round use, providing heating during colder months and cooling during hotter months.
  • High COP for Better Energy Efficiency Higher Coefficient of Performance (COP) ensures efficient operation with reduced power consumption.
  • Lower Operating Cost Energy-saving design helps reduce electricity usage and overall running cost.
  • Digital Temperature Controller Equipped with a digital controller for accurate temperature setting, monitoring, and easy operation.

Swimming Pool Accessories

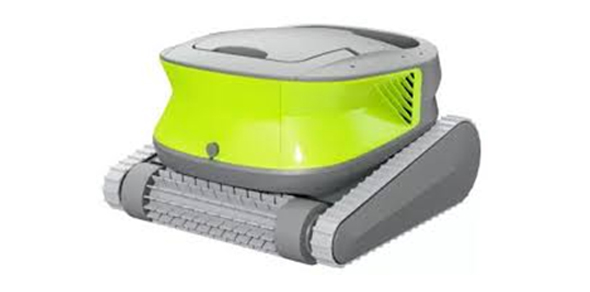

Automatic Pool Cleaning Robot NEW

  • Robotic Pool Cleaning Technology : Advanced robotic cleaner designed to maintain pool hygiene with minimal manual effort.
  • Complete Floor, Wall & Waterline Cleaning : Cleans pool floors, climbs walls, and scrubs waterlines to remove dirt, leaves, and debris effectively.
  • Reduces Manual Cleaning Effort : Eliminates daily manual cleaning requirements and reduces dependency on manpower.
  • Consistent Pool Hygiene : Ensures regular and reliable cleaning performance for a safer, cleaner swimming environment.
  • Lower Operational Cost : Saves time, reduces labour cost, and supports smarter pool maintenance.

POOL AUTOMATION NEW

Motor Monitoring

  • On/Off indication of all motors
  • Live ampere monitoring of all motors
  • Under/over current set value information

Water Quality & Lighting

  • pH & chlorine control
  • Underwater lights status

Core Operations

  • Auto filter operation
  • Real-time pressure monitoring

Trip Indication

  • Trip indication of all motors with status
  • Under current trip
  • Over current trip
  • Level trip, as applicable

Temperature Alerts

  • Temperature monitoring
  • Heat pump alerts
Chemical tank low-level alerts
Water clogging alarm
01

Automation Module

- Auto Filter Operation
- Real-time Pressure Monitoring
02

Real time monitoring of:

- On/Off Indication of all motors
- Live Ampere monitoring of all motors
- Under/over current set value information
03

Temperature Monitoring:

Temperature Monitoring & Heat Pump Alerts
about-img-2
04

Trip indication of all motors with status:

- Under Current Trip
- Over Current Trip
- Level Trip (As applicable)
05

Additional Controls & Monitoring:

- pH & Chlorine Control
- Underwater Lights Status
06

Alerts & Safety:

- Chemical Tank Low-Level Alerts
- Water Clogging Alarm

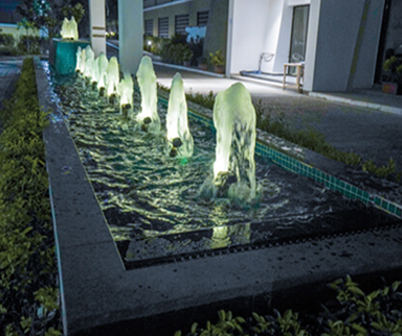

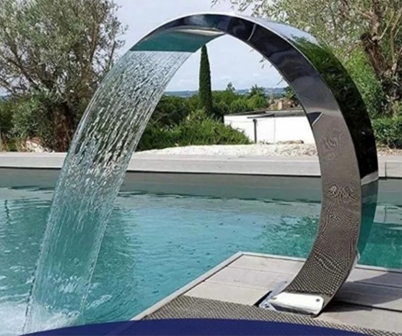

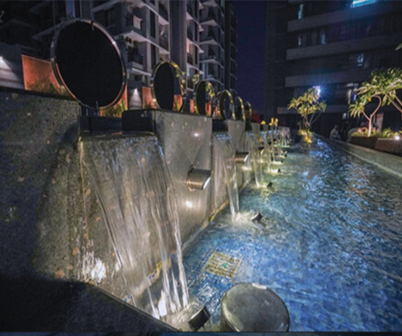

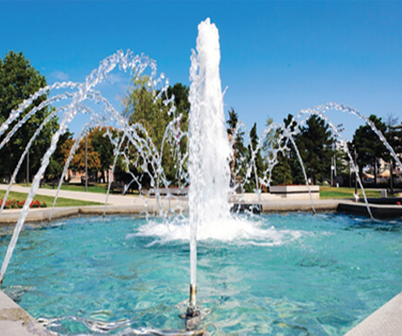

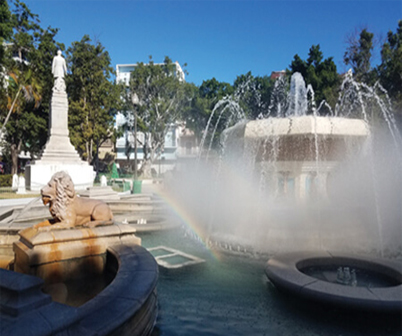

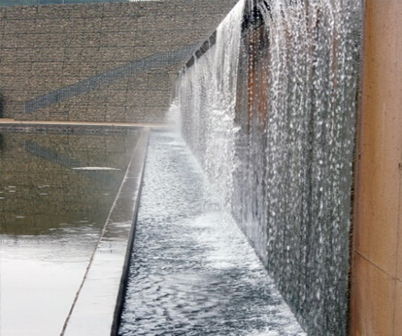

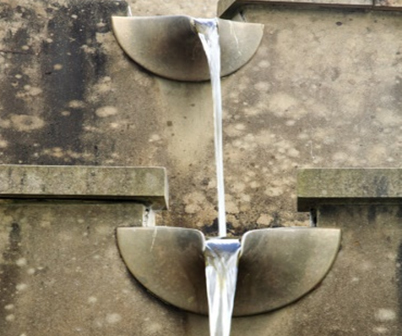

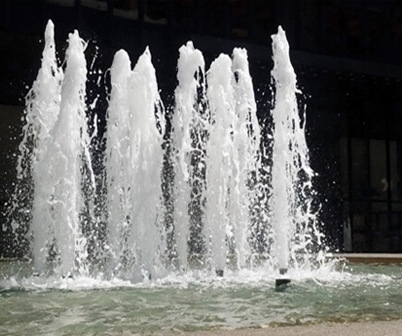

Pool Water Features

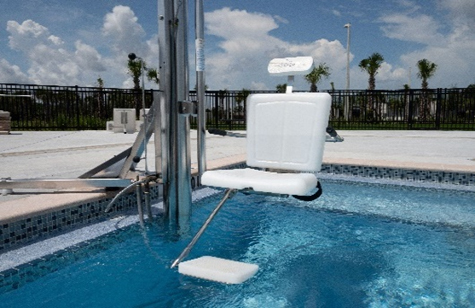

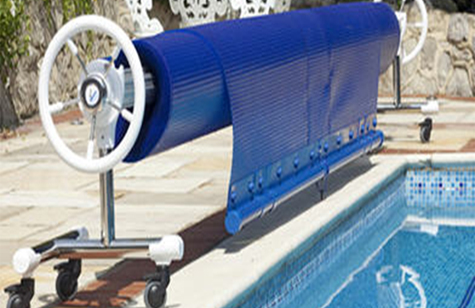

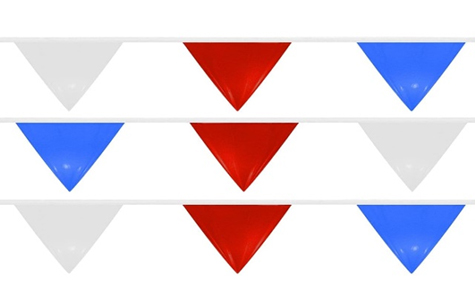

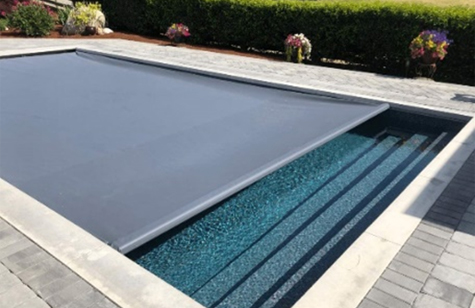

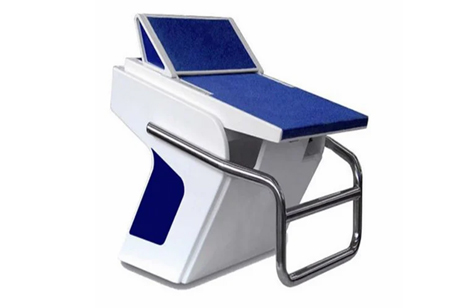

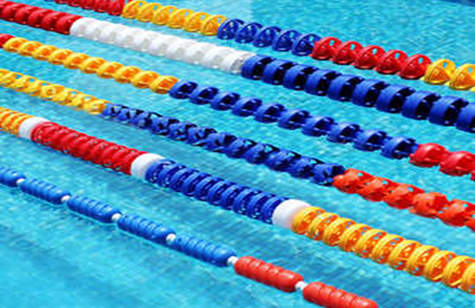

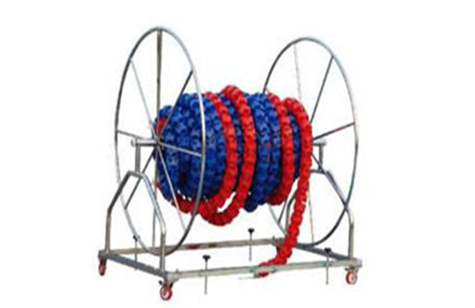

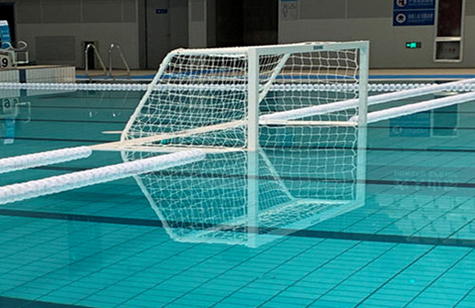

Pool Competition Accessories NEW

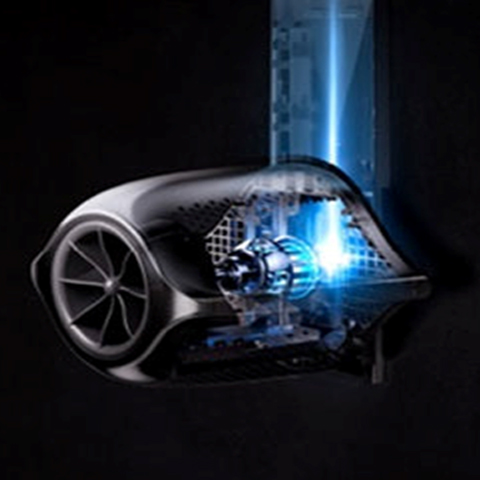

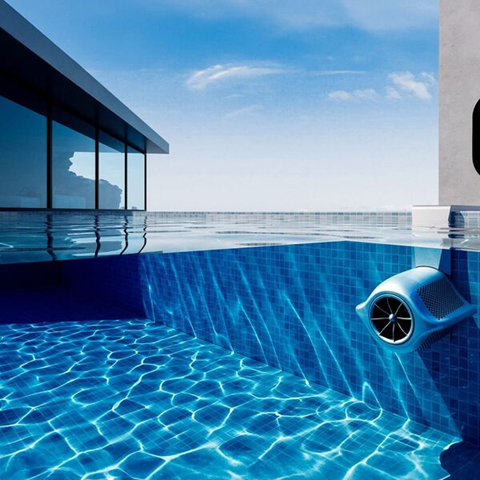

Endless Pool

Experience your pool like a child in the fun-filled ocean adventure, with safety features designed for all ages and fitness levels. InverJet delivers smoother currents with precise coordination of various flow intensity and angles, expanding to a larger waves area for both swimming and surfing fun.
